360-Cryolipolysis Machine with 6 Handles: Technical Specifications and Clinical Advantages

For practitioners and distributors seeking a deep understanding of the hardware, we present a technical breakdown of the Professional 6-Handle Cryolipolysis System. This device is engineered for high-volume clinics requiring versatility, precision, and durability.

System Overview

This device utilizes Cryolipolysis, a non-invasive medical technology that selectively reduces fat deposits by exposing them to controlled cooling. The process triggers apoptosis in adipocytes (fat cells), which are then naturally metabolized and eliminated by the body’s lymphatic system over a period of 4 to 12 weeks post-treatment.

Core Technical Specifications

Understanding the machine’s capabilities is crucial for integrating it into a medical practice:

• Display & Interface: 15.6-inch large LCD screen for intuitive monitoring and control of treatment parameters.
• Cooling System: Adjustable 1-5 gears, achieving a cooling temperature range from 1°C down to -11°C. This precision ensures effective crystallization of lipids while protecting non-adipose tissue.
• Heating Function: Pre-programmed 3-minute heating stage (37-45°C) to accelerate local blood circulation before cooling, enhancing comfort and efficacy.
• Vacuum Suction: 5-stage adjustable negative pressure ranging from 10 to 50 Kpa. This allows for atraumatic grip on various body types and tissue densities.
• Power Supply: Dual voltage capability (110V/220V, 50Hz/60Hz) making it suitable for international markets. Output power is rated at 1000W.

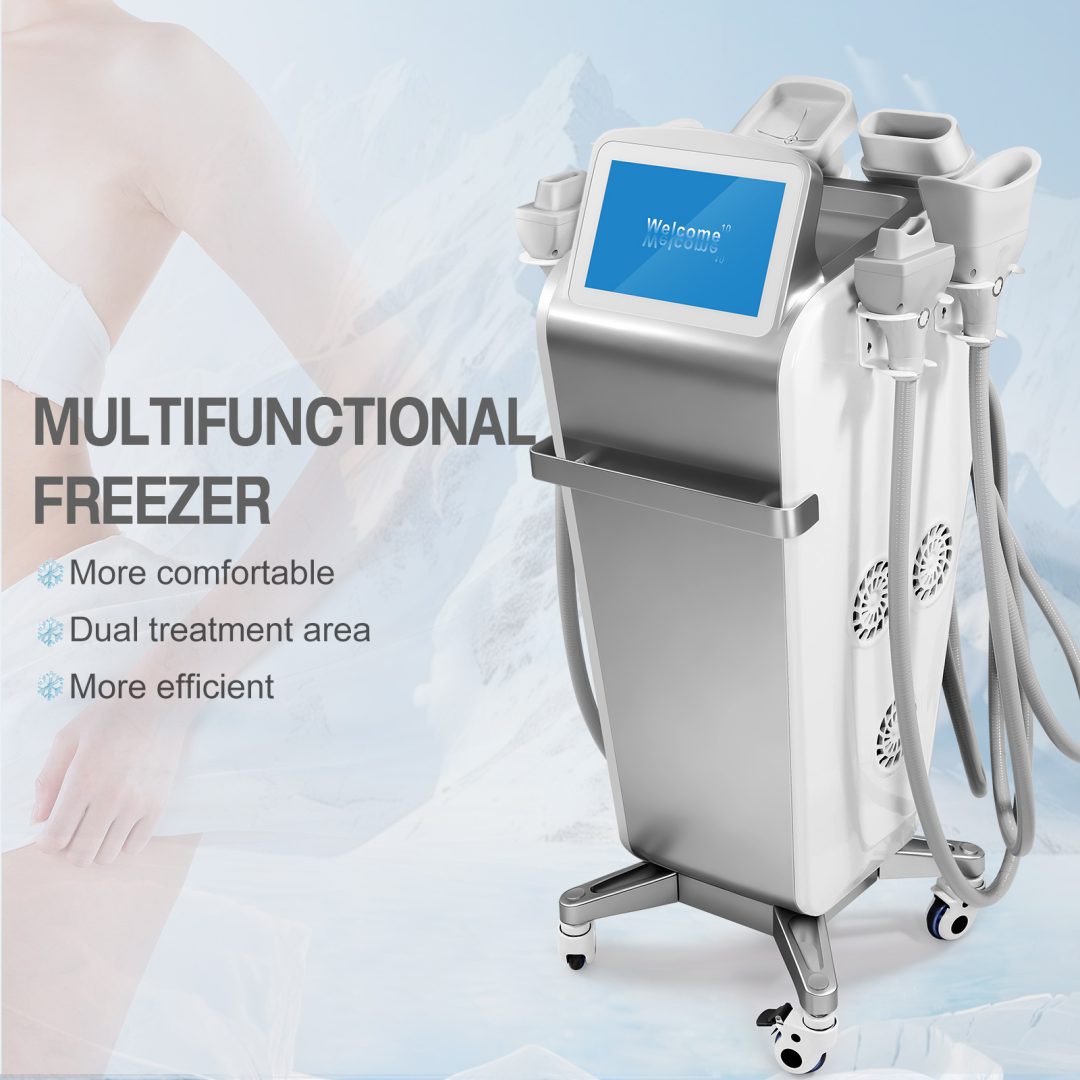

The 6-Handle Configuration: A Technical Advantage

The defining feature of this model is its multi-application capability:

1. Dual-Channel Independence: The machine supports two channels working simultaneously. This allows for “dual treatment”—either treating one patient on two areas at once (halving treatment time) or connecting two patients to the same machine (doubling clinic output).
2. Applicator Variety: The system includes 5 different sized cryolipolysis handles and 1 select cryo handle. This variety ensures proper fit for anatomical diversity, from small inner-knee fat pads to larger abdominal aprons.
3. Plug-and-Play Technology: Probes utilize a “press and install” mechanism. This allows for rapid swapping of handles without technical support, reducing downtime between appointments.

Safety Engineering

Patient safety is paramount. This system incorporates multiple redundancies:

• Antifreeze Membrane Compatibility: Designed to work with specialized nanofiber membranes that protect the epidermis from direct cold exposure and mechanical shear from the suction head.
• Smart Sensors: Built-in sensors monitor temperature in real-time. The system also features automatic detection of water flow and water temperature to prevent system overheating and ensure consistent cooling delivery.
• Medical-Grade Materials: Applicators are constructed from soft, medical-grade silicone, which is hypoallergenic, non-toxic, and safe for repeated clinical use.

Indications for Use

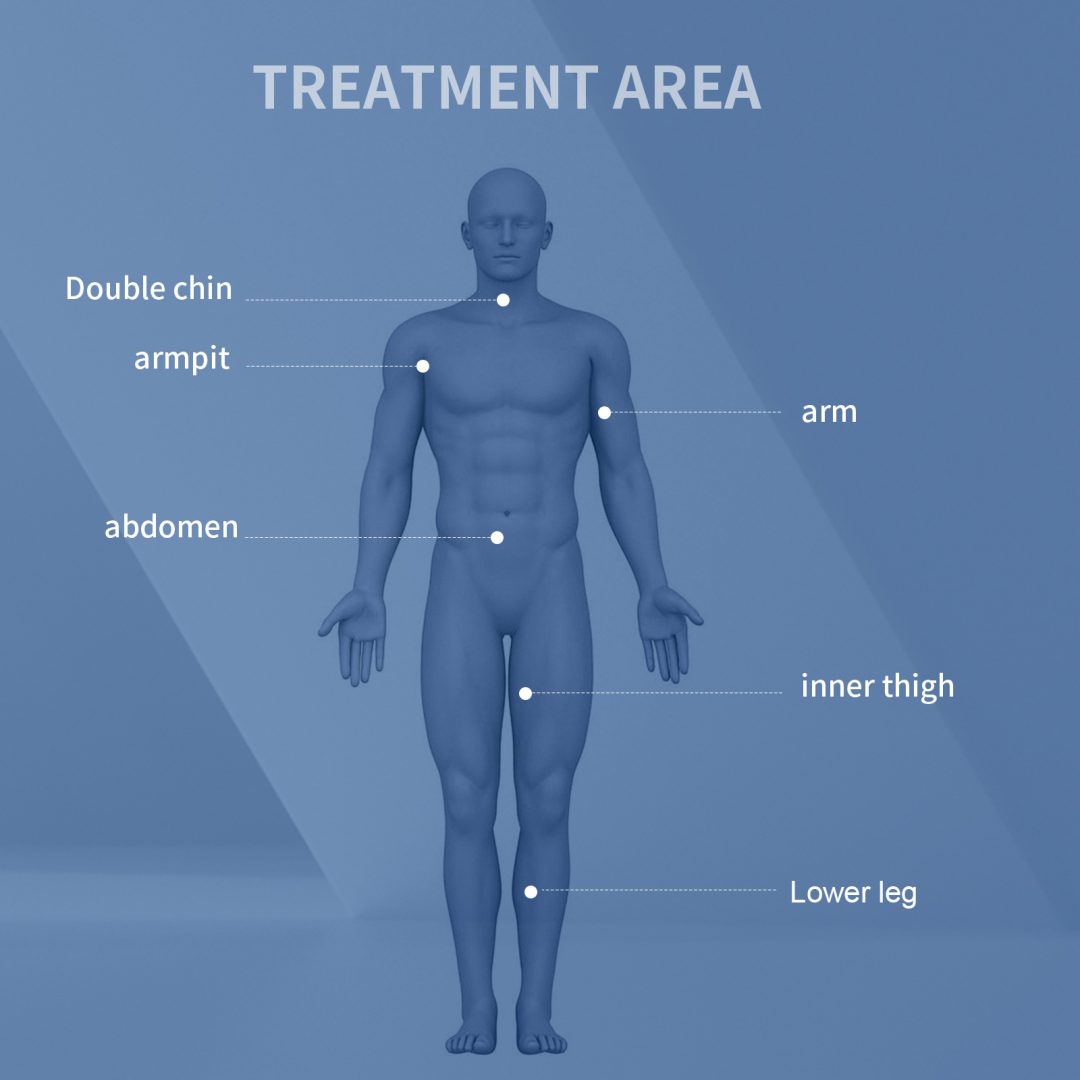

This device is indicated for non-invasive cooling of fat deposits to affect the reduction of them in areas such as the abdomen, flanks, thighs, back, and submental region (double chin). It is specifically designed for use in professional salons and clinics by trained operators.

For detailed integration support, clinical studies, or wholesale purchasing, contact our technical sales team.
